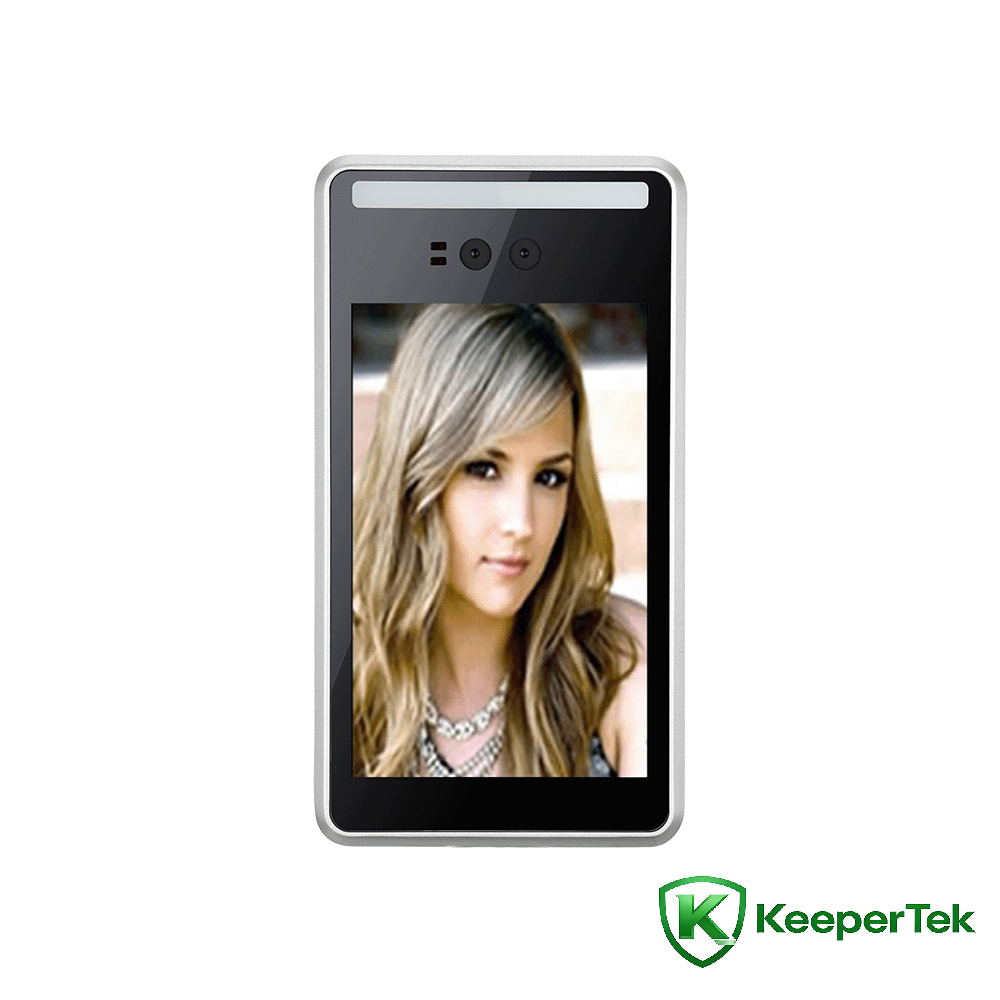

Imashini imenyekanisha mu maso

8isura Kumenyekanisha imashini-imwe-imwe KT- FR012

Ibipimo bya tekiniki

Gutunganya: Dual-core ARM Cortex-A7

Sisitemu y'imikorere: Sisitemu y'imikorere ya Linux

Ububiko: 1GB RAM + 8GB eMMC

Inguni yo kureba: Ihagaritse yo kureba: 30 °； Inguni yo kureba itambitse: 30 °

Igikoresho cyo gufata amashusho: 1 / 2.8 "Gusuzuma iterambere rya CMOS

Lens: 6mm

Module yo guhanagura amakarita (bidashoboka): 13.56MHz, ishyigikira amakarita ya Mifare S50, S70, amakarita ya ultralinght, amakarita ya NTAG, DESFire D21, D41, D81, amakarita ya CPU adahuza

Module ya 4G (itabishaka): ishyigikira LTE-FDD, LTE-TDD, DC-HSPA +, WCDMA, EDGE, GPRS nibindi bipimo byurusobe, hamwe nigipimo ntarengwa cyo kugabanuka cya 160Mbps nigipimo kinini cyo hejuru cya 60Mbps

Modire ya Wifi (itabishaka): 2.4GHz yumurongo wumurongo, IEEE802 b / g / n protocole； 5GHz yumurongo wumurongo, IEEE802 a / n / ac protocole

Orateur: ibisanzwe, amajwi yo gukina amajwi arashobora gutegurwa

Uburebure bwo kumenyekana: metero 1.2 ~ 2,2, inguni irashobora guhinduka

Intera yo kumenyekana: metero 0.5 ~ 1.5, irahinduka bitewe ninzira

Igihe cyo kumenyekana: munsi yamasegonda 0.3

Ubushobozi bwo gufata amajwi: 80.000 byanditseho amashusho

Ubushobozi bwo mumaso: 30.000

Umucyo wa ecran: ≥400 cd / m2

Imiyoboro y'urusobe: 1 RJ45 10M / 100M ihuza icyambu cya Ethernet icyambu, icyambu cya Gigabit cyihariye

Imigaragarire ya Wiegand: 1 Imigaragarire ya Wiegand, 1 Iyinjiza rya Wiegand

Imigaragarire yumuryango: Imiyoboro yumuryango 1

Isohora ryo gufungura imiryango: inzira 1 yo gufungura umuryango

Urugi rwo gufunga umuryango: 1-inzira yo gufunga umuryango

Imigaragarire y'itumanaho: umuyoboro 1 485

Kamera: Kamera ya binocular, urumuri rugaragara kandi hafi ya infragre, ifasha kumenya umubiri muzima

Pikeli ikora neza: miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Kumurika ntarengwa: ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo cyerekana-urusaku: ≥50db (AGC OFF)

Ingano yagutse: 120db, ISP algorithm igice cyerekana isura

Kode ya videwo: H.265 Umwirondoro wingenzi wa kodegisi / H.264 BP / MP / HP kodegisi / MJPEG

Ubushyuhe bwo gukora: -30 ℃ - +60℃

Ubushuhe bwakazi: 0 ~ 90% ugereranije nubushuhe, ntagahunda

Urwego rwo gutera umunyu: Rp6 cyangwa hejuru

Antistatike: hamagara ± 6KV, umwuka ± 8KV

Amashanyarazi: DC12V / 2A

Urwego rwo kurwanya imvururu: IK06

Urwego rwo kurinda: IP66

Imbaraga z'ibikoresho: 20W (MAX)

Ingano y'ibikoresho: 252 (uburebure) * 136 (ubugari) * 26 (uburebure) mm

Ibiranga

Shigikira binokula nzima umubiri

Umwihariko wo kumenyekanisha isura ya algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.3s

Igihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000H

Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

Porotokole ikungahaye cyane, ishyigikira protocole ya SDK na HTTP kumahuriro menshi nka Linux / Windows

Ukoresheje sisitemu y'imikorere ya Linux, sisitemu ihagaze neza

Shyigikira 30.000+ yo kugereranya amasomero yo kugereranya hamwe na 80.000 byamenyekanye

Shyigikira ububiko bwa TF bwagutse, amashusho arashobora kubikwa ubudahwema umwaka 1, videwo irashobora kubikwa ubudahwema icyumweru cyangwa irenga

Ubushyuhe bwo gukora: -30 ℃ - +60℃

Hanze IP66 idafite amazi kandi itagira umukungugu

Igikoresho gishyigikira kwinjira kwaho gucunga, kubaza, no kugena igikoresho.

Imigozi ikungahaye cyane (I / O, WG26, WG34, RJ45, sensor yumuryango, gufungura umuryango, gufunga umuryango, RS485)

I-8-IPS yuzuye-yerekana HD yerekana, nta gusiga cyangwa gutinda kumashusho

Kwunguka byikora hamwe nuburinganire bwera byemerera ibara ryukuri kwishusho kugarurwa muburyo busanzwe

Yubatswe mumurongo wumukara urwego rukoreshwa mugukurikirana amashusho, kumenya neza urumuri ruto

Kugabanya urusaku rwa 3D hamwe nubuhanga bwinjira mubicu bituma amashusho yo gukurikirana munsi yumucyo muto asobanutse kandi arambuye

Shyigikira guhagarika igice cya videwo

Shyigikira kodegisi ya ROI

Automatic yera iringaniye, intoki yera iringaniye irahari

Shyigikira kugabanya urusaku 2D no kugabanya urusaku rwa 3D

Shyigikira amashusho ya videwo, itandukaniro, hue, kwiyuzuza, hamwe no guhindura gamma

Shigikira gushiraho igihe ntarengwa cyo kwerekana igihe

Gushyigikira guhura nubwenge no guhura nubwenge bwo kuzamura ubwenge
