Imashini imenyekanisha mu maso

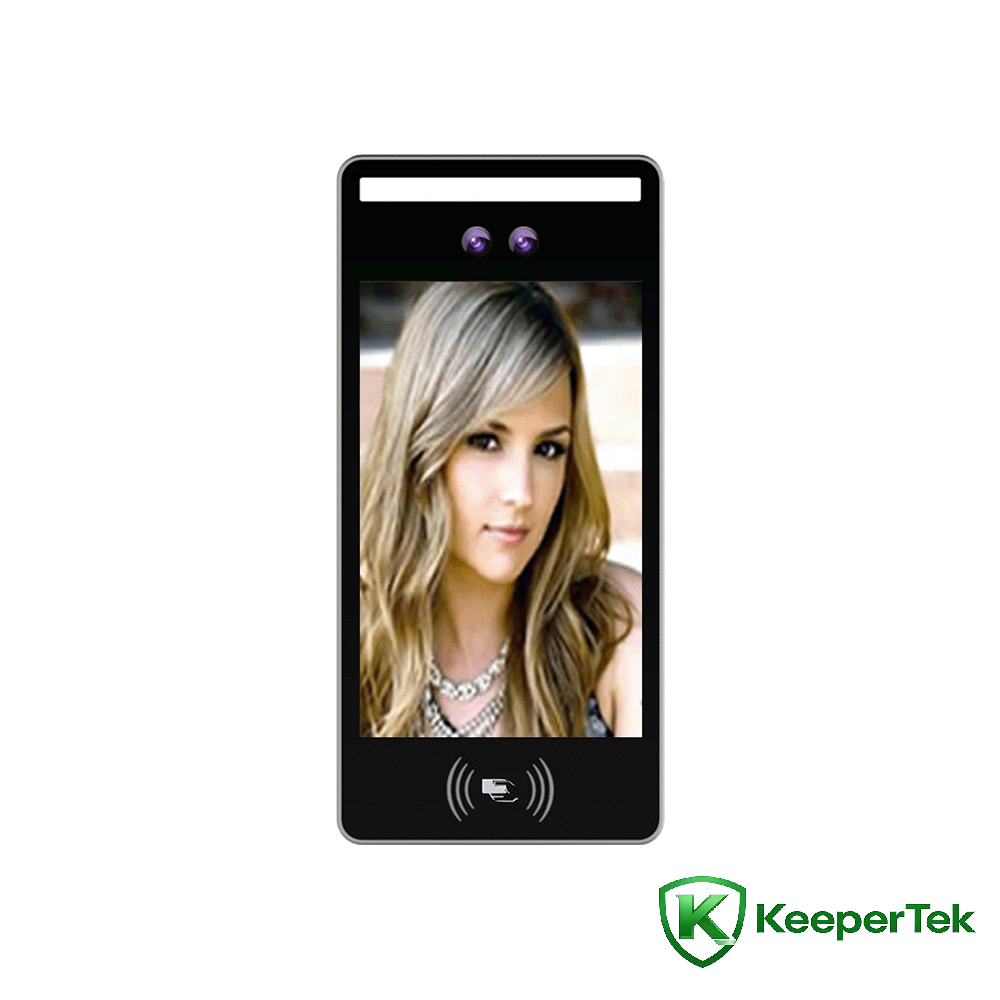

8isura menya Ikarita yohanagura Imashini yose-imwe KT- FR013

Ibipimo bya tekiniki

Gutunganya: Dual-core ARM Cortex-A7

Sisitemu y'imikorere: sisitemu y'imikorere ya Linux

Ububiko: Shyigikira ububiko bwa TF

Kamera: Binocular, miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Igikoresho cyo gufata amashusho: 1 / 2.8 "Gusuzuma iterambere rya CMOS

Lens: 6mm

Ikarita yo guhanagura ikarita: itabishaka, ishyigikira gusoma Ubwoko-A na Type-B amakarita ya ISO / IEC14443, ashyigikira indangamuntu UID hamwe nindangamuntu idasanzwe.

Orateur: ibisanzwe, amajwi yo gukina birashobora gutegurwa

Uburebure bwo kumenyekana: metero 1.2 ~ 2,2, inguni irashobora guhinduka

Intera yo kumenyekana: metero 0.5 ~ 1.5, irahinduka bitewe ninzira

Inguni yo mu maso: dogere 30 ibumoso n'iburyo, dogere 30 hejuru no hepfo

Igihe cyo kumenyekana: munsi yamasegonda 0.3

Ubushobozi bwo kubika: 80.000 byanditseho amashusho

Ubushobozi bwo mumaso: 30.000

Ubwoko bw'amakarita ashobora guhanagurwa: 13.56MHz, shyigikira amakarita ya Mifare S50, S70, amakarita ya ultralinght, amakarita ya NTAG, DESFire D21, D41, D81, amakarita ya CPU adahuza

Guhindura ibisohoka: 1 guhinduranya ibisohoka, ibindi byambu bya GPIO birashobora gutegurwa

USB Imigaragarire: 1 USB interineti nkigikoresho

Imiyoboro y'urusobe: 1 RJ45 10M / 100M ihuza icyambu cya Ethernet icyambu, icyambu cya Gigabit cyihariye

Imigaragarire ya Wiegand: 1 Imigaragarire ya Wiegand, 1 Iyinjiza rya Wiegand

Imigaragarire y'itumanaho: 1 RS485

Kamera: Kamera ya binocular, urumuri rugaragara kandi hafi ya infragre, ifasha kumenya umubiri muzima

Pikeli ikora neza: miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Kumurika ntarengwa: ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo cyerekana-urusaku: ≥50db (AGC OFF)

Ingano yagutse: 120db, ISP algorithm igice cyerekana isura

Kode ya videwo: H.265 Umwirondoro wingenzi wa kodegisi / H.264 BP / MP / HP kodegisi / MJPEG

Ubushyuhe bwo gukora: -30 ℃ - +60℃

Ubushuhe bwakazi: 0 ~ 90% ugereranije nubushuhe, ntagahunda

Imbaraga z'ibikoresho: 20W (MAX)

Urwego rwo gutera umunyu: Rp6 cyangwa hejuru

Antistatike: hamagara ± 6KV, umwuka ± 8KV

Amashanyarazi: DC12V / 2A

Urwego rwo kurwanya imvururu: IK06

Urwego rwo kurinda: IP66

Ibisobanuro bya ecran: 8-santimetero ndende-isobanura IPS

Ingano y'ibikoresho: 265 (uburebure) * 126 (ubugari) * 26 (uburebure) mm

Ibiranga

Shigikira binokula nzima umubiri

Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

Kumenyekanisha isura idasanzwe algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.3s

Ukoresheje sisitemu y'imikorere ya LINUX, sisitemu irahagaze

H.265 yerekana imiterere ya videwo yerekana amashusho ahujwe na NVR nibindi bikoresho byo kubika binyuze muri protokole ya ONVIF na protocole ya GB28181.

Shyigikira ububiko bwaho mu ikarita ya TF, hamwe nububiko bwamafoto bwumwaka 1 na videwo ukwezi 1 cyangwa kurenga (bitewe nubushobozi bwikarita ya TF itabishaka)

Igihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000h

Shyigikira 30.000+ yo kugereranya amasomero yo kugereranya hamwe na 80.000 byamenyekanye

Porotokole ikungahaye cyane, ishyigikira TCP / IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocole munsi ya Windows / Linux hamwe nandi ma platform

Ubushyuhe bwo gukora: -30 ℃ -60℃

IP66 itagira amazi kandi itagira umukungugu

Shigikira QR code yo gusoma

Imigozi ikungahaye cyane (I / O, WG26, WG34, RJ45, USB, RS485)

I-8-IPS yuzuye-yerekana HD yerekana, nta gusiga cyangwa gutinda kumashusho

Kwunguka byikora hamwe nuburinganire bwera byemerera ibara ryukuri kwishusho kugarurwa muburyo busanzwe

Yubatswe mumurongo wumukara urwego rukoreshwa mugukurikirana amashusho, kumenya neza urumuri ruto

Kugabanya urusaku rwa 3D hamwe na tekinoroji yinjira mu gihu bituma amashusho akurikirana munsi yamurika rike kandi arambuye

Shyigikira guhagarika igice cya videwo

Shyigikira kodegisi ya ROI

Automatic yera iringaniye, intoki yera iringaniye irahari

Shyigikira kugabanya urusaku 2D no kugabanya urusaku rwa 3D

Shyigikira amashusho ya videwo, itandukaniro, hue, kwiyuzuza, hamwe no guhindura gamma

Shigikira gushiraho igihe ntarengwa cyo kwerekana igihe

Gushyigikira guhura nubwenge no guhura nubwenge bwo kuzamura ubwenge
