Imashini imenyekanisha mu maso

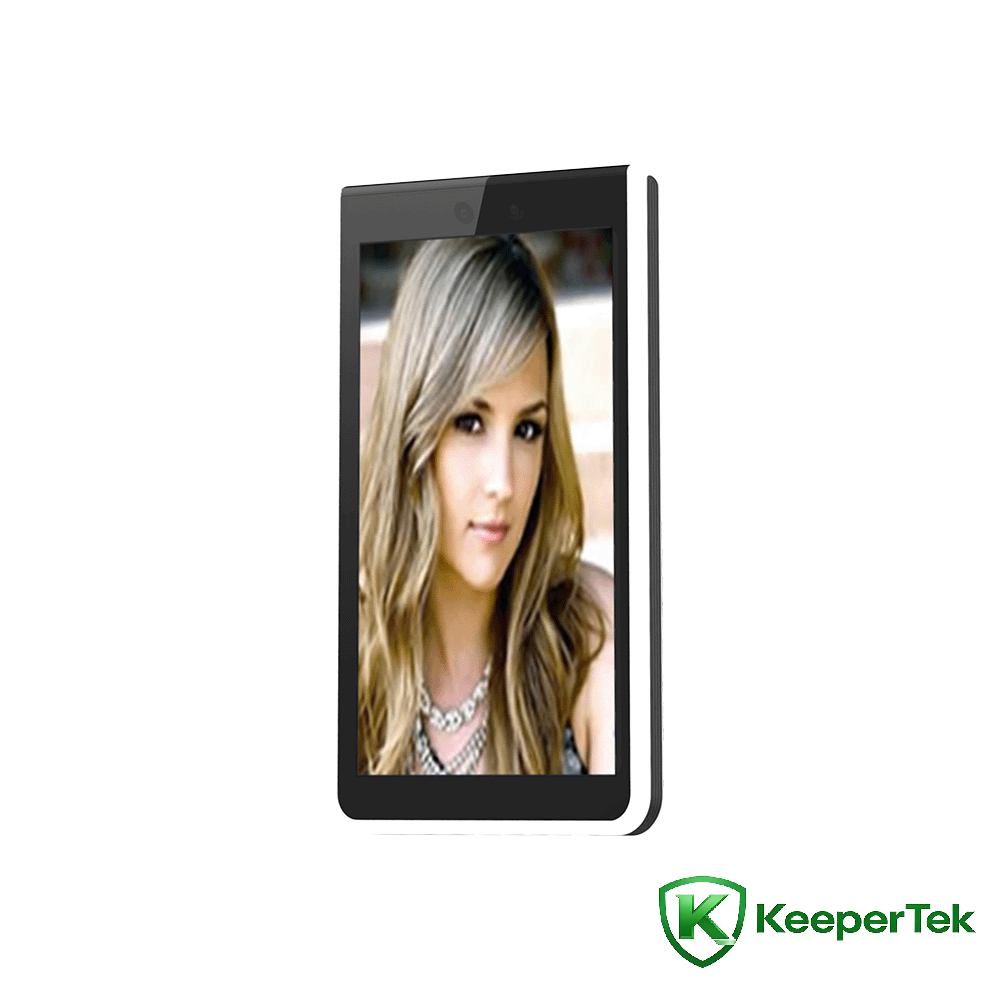

8isura menya brush Ultra-thin ikarita yose-muri-imwe imashini KT-FR011

Ibipimo bya tekiniki

Gutunganya: Chip yo mu rugo YiZhi, ibyuma bibiri-bitunganijwe + 1G yibuka + 16G EMMC

Sisitemu y'imikorere: sisitemu y'imikorere ya Linux

Ububiko: Shyigikira ububiko bwa TF (bidashoboka)

Kamera: Binocular, miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Igikoresho cyo gufata amashusho: 1 / 2.8 "Gusuzuma iterambere rya CMOS

Lens: uburebure bwa 4.5mm

Modire ya WiFi: umurongo wa 2.4GHz, umurongo wa IEEE802 b / g / n protocole； 5GHz yumurongo wumurongo, IEEE802 a / n / ac protocole

Ubwoko bw'amakarita bushobora guhanagurwa: mifare imwe (M1), S50, S70, NTAG2xx hamwe nandi makarita ya bande ya 13.56MHz, TK, EM hamwe nandi makarita 125KHz yumurongo wa bande (IC / ID irashyigikiwe)

Orateur: Ibirimo gukina amajwi birashobora gutegurwa

Uburebure bwo kumenyekana: metero 1,2 ~ 2,3, inguni irashobora guhinduka

Intera yo kumenyekana: metero 0.5 ~ 2,5

Inguni yo mu maso: dogere 30 ibumoso n'iburyo, dogere 30 hejuru no hepfo

Igihe cyo kumenyekana: munsi yamasegonda 0.3

Ubushobozi bwo kubika: 160.000 byanditseho amashusho

Ubushobozi bwo mumaso: 24.000

Imbaraga zinjiza: DC12V / 2A

Imiyoboro y'urusobe: 1 RJ45 10M / 100M ihuza icyambu cya Ethernet icyambu, icyambu cya Gigabit cyihariye

Imigaragarire ya Wiegand: 1 Imigaragarire ya Wiegand, 1 Iyinjiza rya Wiegand

Imenyekanisha ryimbere: inzira-1 yumuriro winjiza

Imigaragarire yumuryango: Irembo ryumuryango winjiza

Urugi rwo gufungura urugi: 1 umuryango wugurura umuryango winjiza

Imigaragarire ya Doorbell: Ibisohoka 1 byumuryango

Imigaragarire yo gufunga umuryango: isohoka ryumuryango 1

Imigaragarire y'itumanaho: 1 RS485 itumanaho

Imigaragarire ya USB: 1 USB

Kamera: Kamera ya binocular, lens-ibirahuri byose, urumuri rugaragara kandi hafi-ya-infragre, ifasha kumenya umubiri muzima

Pikeli ikora neza: miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Kumurika ntarengwa: ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo cyerekana-urusaku: ≥50db (AGC OFF)

Ingano yagutse: 120db, ISP algorithm igice cyerekana isura

Kode ya videwo: H.265 Umwirondoro wingenzi wa kodegisi / H.264 BP / MP / HP kodegisi / MJPEG

Ubushyuhe bwo gukora: -20 ℃ -55℃

Ubushuhe bwakazi: 0 ~ 90% ugereranije nubushuhe, ntagahunda

Imbaraga z'ibikoresho: 20W (MAX)

Urwego rwo gutera umunyu: Rp6 cyangwa hejuru

Antistatike: hamagara ± 6KV, umwuka ± 8KV

Amashanyarazi: DC12V / 2A

Urwego rwo kurinda: IP42

Ibisobanuro bya ecran: 8-santimetero ndende-isobanura IPS

Ingano y'ibikoresho: 215.22 * 130 * 18mm

Ibiranga

Shigikira binokula nzima umubiri

Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

Kumenyekanisha isura idasanzwe algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.3s

Yubatswe muri CPU yo murugo

Ukoresheje sisitemu y'imikorere ya LINUX, sisitemu irahagaze

H.265 yerekana imiterere ya videwo yerekana amashusho ahujwe na NVR nibindi bikoresho byo kubika binyuze muri protokole ya ONVIF na protocole ya GB28181.

Shyigikira ububiko bwaho mu ikarita ya TF, hamwe nububiko bwamafoto bwumwaka 1 na videwo ukwezi 1 cyangwa kurenga (bitewe nubushobozi bwikarita ya TF itabishaka)

Igihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000h

Shyigikira 24,000+ amasura yo kugereranya amasomero hamwe na 160.000 byamenyekanye

Porotokole ikungahaye cyane, ishyigikira TCP / IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocole munsi ya Windows / Linux hamwe nandi ma platform

Ubushyuhe bwo gukora: -20 ℃ -55℃

Shyigikira impuruza yo kurwanya tamper

Shyigikira amajwi ya docking na videwo intercom

Shyigikira gukoraho ecran imbere-imiyoborere n'iboneza

Imigozi ikungahaye cyane (I / O, WG26, WG34, RJ45, USB, sensor yumuryango, inzogera yumuryango, gufungura umuryango, gutabaza, RS485)

I-8-IPS yuzuye-yerekana HD yerekana, nta gusiga cyangwa gutinda kumashusho

Kwunguka byikora hamwe nuburinganire bwera byemerera ibara ryukuri kwishusho kugarurwa muburyo busanzwe

Yubatswe mumurongo wumukara urwego rukoreshwa mugukurikirana amashusho, kumenya neza urumuri ruto

Kugabanya urusaku rwa 3D hamwe nubuhanga bwinjira mubicu bituma amashusho yo gukurikirana munsi yumucyo muto asobanutse kandi arambuye

Shyigikira kode ya kode na I frame intera igenamigambi

Shyigikira guhagarika igice cya videwo

Shyigikira kodegisi ya ROI

Automatic yera iringaniye, intoki yera iringaniye irahari

Shyigikira igihe ntarengwa cyo gushiraho

Shigikira igenamiterere rya terefone igendanwa

Shyigikira kugabanya urusaku 2D no kugabanya urusaku rwa 3D

Shyigikira gahunda yo gufata igihe cyigihe no kohereza uburyo bwo gushiraho

Shyigikira amashusho ya videwo, itandukaniro, hue, kwiyuzuza, hamwe no guhindura gamma

Shigikira gushiraho igihe ntarengwa cyo kwerekana igihe

Gushyigikira guhura nubwenge no guhura nubwenge bwo kuzamura ubwenge
