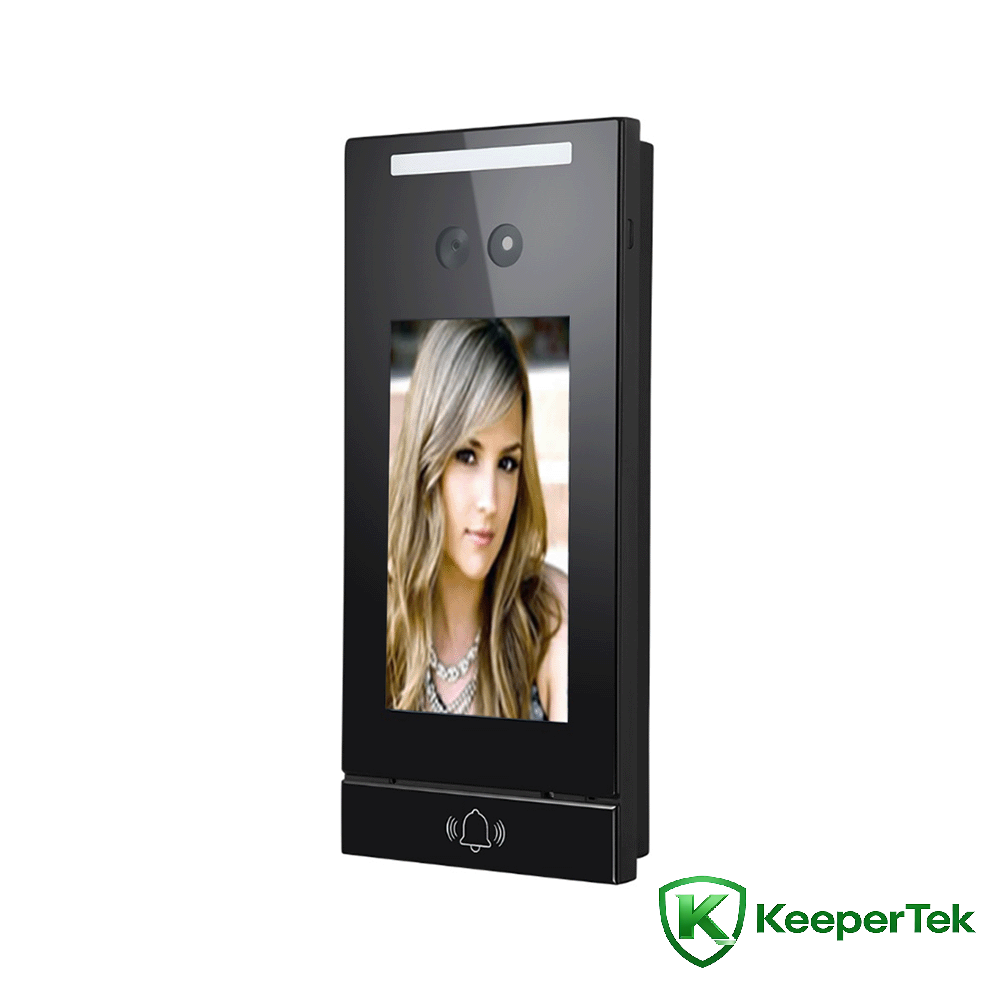

Imashini imenyekanisha mu maso

5santimetero abantu Isura menya brush Ikarita ihuriweho imashini KT- FR004

Ibipimo bya tekiniki

gutunganya Imbere mu rugo ibiri-intungamubiri + 1G yibuka + 8G EMMC

sisitemu y'imikorere Sisitemu y'imikorere ya Linux

ububiko Shyigikira ububiko bwa TF (bidashoboka)

Kamera Binocular, miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Igikoresho cyo gufata amashusho 1 / 2.8 "Gusikana Iterambere rya CMOS

Ihanagura ikarita Shyigikira LTE-TDD / LTE-FDD / HSPA + / GSM / GPRS / EDGE ibipimo byinshi, ishyigikira igipimo cyo gukuramo kigera kuri 150Mbps, na 50Mbps yo kohereza

Modire ya Wifi Bihitamo, 2.4GHz ya WiFi SoC chip, ihuriweho na IEEE 802.11b / g / n baseband hamwe numuzunguruko wa RF, ntarengwa 72.2Mbit / s igipimo cyumubiri

umuvugizi Iboneza bisanzwe, ibikinisho byo gukina birashobora gutegurwa

Uburebure bwo kumenya Metero 1.2 ~ 2,3, inguni irashobora guhinduka

intera yo kumenyekana Metero 0.5 ~ 1.5

Inguni Dogere 30 ibumoso n'iburyo, dogere 30 hejuru no hepfo

igihe cyo kumenyekana Munsi yamasegonda 0.5

ubushobozi bwo kubika 80.000 yerekana amashusho

ubushobozi bwo guhangana Impapuro 10,000

Ubwoko bw'amakarita bushobora guhanagurwa 13.56MHz, ishyigikira amakarita ya Mifare S50, S70, amakarita ya ultralinght, amakarita ya NTAG, DESFire D21, D41, D81, amakarita ya CPU adahuza

Kwinjiza ingufu DC12V/2A

Imiyoboro 1 RJ45 10M / 100M ihuza imiyoboro ya Ethernet, icyambu cya Gigabit

Imigaragarire ya Wiegand 1 Imigaragarire ya Wiegand, 1 Wiegand yimbere

Imenyekanisha 1 umuriro wo gutabaza winjiza, ibisohoka 1

Imigaragarire yumuryango 1 umuyoboro wumuryango sensor yimbere yinjiza

Fungura umuryango 1 umuryango ufungura intera yinjira

inzugi z'umuryango Isohora ryumuryango 1

urugi rwo gufunga 1 umuyoboro wumuryango ufunga interineti isohoka

Imigaragarire y'itumanaho Umuyoboro 1 RS485 itumanaho

kamera Kamera ya binocular, lens-ibirahuri byose, urumuri rugaragara kandi hafi-ya-infragre, ifasha kumenya umubiri muzima

Pikeli nziza Miliyoni 2,1 za pigiseli nziza, 1920 * 1080

kumurika byibuze Ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo-Kuri-Urusaku ≥50db (AGC OFF)

intera nini cyane 120db, ISP algorithm igice cyerekana isura

kodegisi H.265 Umwirondoro Wibanze / H.264 BP / MP / HP kodegisi / MJPEG

ubushyuhe bwakazi-20℃ - +60℃

Ubushuhe bwo gukora 0 ~ 90% ugereranije nubushuhe, ntagahunda

Imbaraga z'ibikoresho 15W(MAX)

Urwego rwo gutera umunyu Rp urwego 6 no hejuru

antistatic Menyesha ± 6KV, ikirere ± 8KV

ikoreshwa na DC12V/2A

Urwego rwo kurinda IP42

Ibisobanuro bya ecran 5-santimetero ndende-isobanura IPS

Ingano y'ibikoresho 205 (uburebure) * 95 (ubugari) * 24.5 (ubugari) mm

Ibiranga

Shigikira binokula nzima umubiri

Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

Kumenyekanisha isura idasanzwe algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.5s

Yubatswe muri CPU yo murugo

Ukoresheje sisitemu y'imikorere ya LINUX, sisitemu irahagaze

H.265 yerekana imiterere ya videwo yerekana amashusho ahujwe na NVR nibindi bikoresho byo kubika binyuze muri protokole ya ONVIF na protocole ya GB28181.

Shyigikira ububiko bwaho mu ikarita ya TF, hamwe nububiko bwamafoto bwumwaka 1 na videwo ukwezi 1 cyangwa kurenga (bitewe nubushobozi bwikarita ya TF itabishaka)

Igihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000h

Shyigikira 10,000+ yo kugereranya amasomero yo kugereranya hamwe na 80.000 byamenyekanye

Porotokole ikungahaye cyane, ishyigikira TCP / IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocole munsi ya Windows / Linux hamwe nandi ma platform

Ubushyuhe bwo gukora: -20 ℃ - +60℃

Imbere muri IP42 idafite amazi kandi idafite umukungugu

Shyigikira impuruza yo kurwanya tamper

Umucumbitsi wubatswe muri IC ikarita

Shyigikira mikoro yinjiza amajwi na disikuru isohoka amajwi

Imigozi ikungahaye cyane (I / O, WG26, WG34, RJ45, sensor yumuryango, inzogera yumuryango, gufungura umuryango, gutabaza, RS485)

I-5-IPS yuzuye-yerekana HD yerekana, nta gusiga cyangwa gutinda kumashusho

Kwunguka byikora hamwe nuburinganire bwera byemerera ibara ryukuri kwishusho kugarurwa muburyo busanzwe

Yubatswe mumurongo wumukara urwego rukoreshwa mugukurikirana amashusho, kumenya neza urumuri ruto

Kugabanya urusaku rwa 3D hamwe na tekinoroji yinjira mu gihu bituma amashusho akurikirana munsi yamurika rike kandi arambuye

Shyigikira kode ya kode na I frame intera igenamigambi

Shyigikira guhagarika igice cya videwo

Shyigikira kodegisi ya ROI

Automatic yera iringaniye, intoki yera iringaniye irahari

Shyigikira igihe ntarengwa cyo gushiraho

Shigikira igenamiterere rya terefone igendanwa

Shyigikira kugabanya urusaku 2D no kugabanya urusaku rwa 3D

Shyigikira gahunda yo gufata igihe cyigihe no kohereza uburyo bwo gushiraho

Shyigikira amashusho ya videwo, itandukaniro, hue, kwiyuzuza, hamwe no guhindura gamma

Shigikira gushiraho igihe ntarengwa cyo kwerekana igihe

Gushyigikira guhura nubwenge no guhura nubwenge bwo kuzamura ubwenge
