Imashini imenyekanisha mu maso

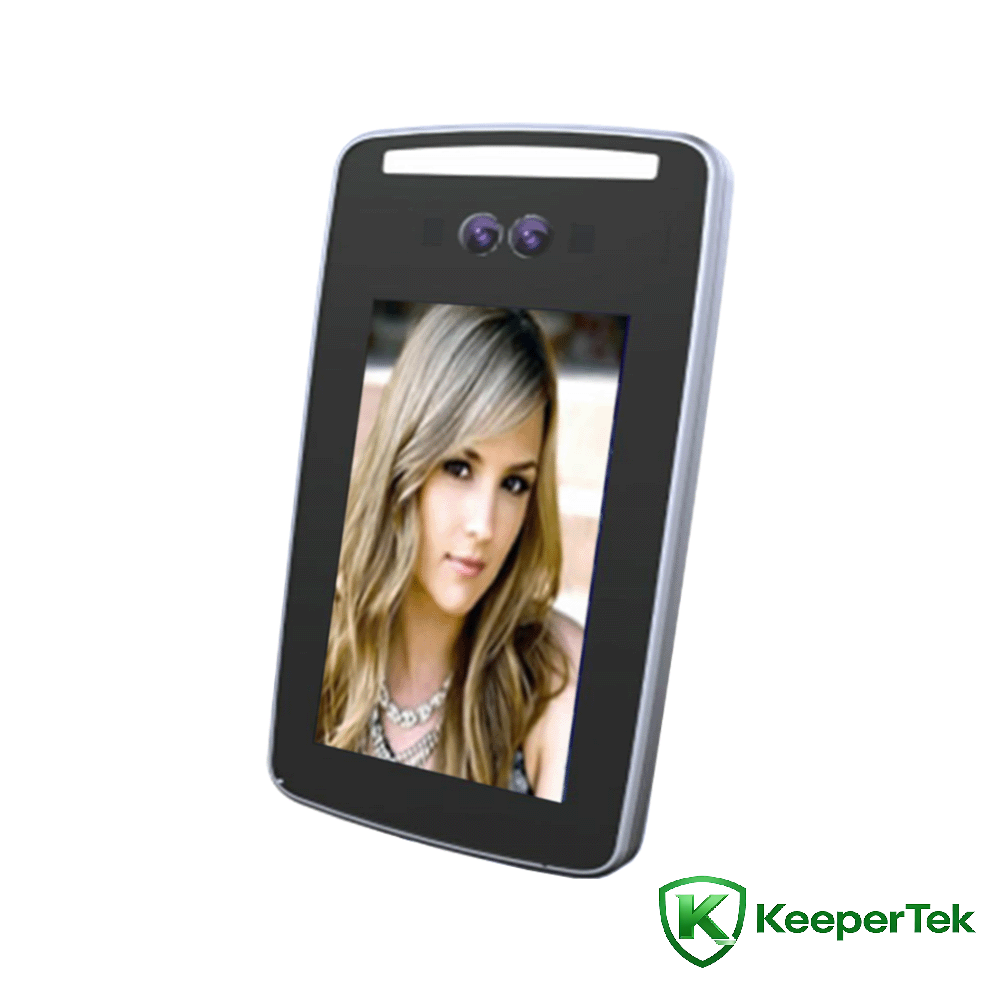

7santimetero abantu Kumenyekanisha isura byose-mumashini imwe KT- FR005

Ibipimo bya tekiniki

Umucungamutungo: ibice bibiri-bitunganijwe + 1G yibuka + 16G EMMC

Sisitemu y'imikorere: sisitemu y'imikorere ya Linux

Ububiko: Shyigikira ububiko bwa TF

Kamera: Binocular, miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Igikoresho cyo gufata amashusho: 1 / 2.8 "Gusuzuma iterambere rya CMOS

Lens: 6mm

Orateur: ibisanzwe, amajwi yo gukina amajwi arashobora gutegurwa

Uburebure bwo kumenyekana: metero 1.2 ~ 2,2, inguni irashobora guhinduka

Intera yo kumenyekana: metero 0.5 ~ 1.5, irahinduka bitewe ninzira

Inguni yo mu maso: dogere 30 ibumoso n'iburyo, dogere 30 hejuru no hepfo

Igihe cyo kumenyekana: munsi yamasegonda 0.5

Ubushobozi bwo mumaso: 20.000

Ubushobozi bwo kubika: 60.000 byanditseho amashusho

Guhindura ibisohoka: 1 guhinduranya ibisohoka, ibindi byambu bya GPIO birashobora gutegurwa

Imiyoboro y'urusobe: 1 RJ45 10M / 100M ihuza icyambu cya Ethernet icyambu, icyambu cya Gigabit cyihariye

Imigaragarire ya Wiegand: 1 Imigaragarire ya Wiegand, 1 Imigaragarire ya Wiegand

USB Imigaragarire: 1 USB interineti nkigikoresho

Imigaragarire y'itumanaho: 1 RS485

Kamera: Kamera ya binocular, urumuri rugaragara kandi hafi ya infragre, ifasha kumenya umubiri muzima

Pikeli ikora neza: miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Kumurika ntarengwa: ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo cyerekana-urusaku: ≥50db (AGC OFF)

Urwego rugari: 100db, ISP algorithm igice cyo kwerekana isura

Kode ya videwo: H.265 Umwirondoro wingenzi wa kodegisi / H.264 BP / MP / HP kodegisi / MJPEG

Urupapuro rwurubuga: rushyigikiwe

Kuzamura ibikoresho kure: gushyigikirwa

Uburyo bwo kohereza: bushigikira imiyoboro rusange no gukoresha LAN

Ubushyuhe bwo gukora: -30 ℃ - +60℃

Ubushuhe bwakazi: 0 ~ 90% ugereranije nubushuhe, ntagahunda

Urwego rwo gutera umunyu: Rp6 cyangwa hejuru

Antistatike: hamagara ± 6KV, umwuka ± 8KV

Amashanyarazi: DC12V / 2A

Urwego rwo kurwanya imvururu: IK06

Urwego rwo kurinda: IP66

Imbaraga z'ibikoresho: 14.4W (MAX)

Ingano y'ibikoresho: 128 (ubugari) * 28 (ubugari) * 240 (uburebure) mm

Ibiranga

Shigikira binokula nzima umubiri

Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

Kumenyekanisha isura idasanzwe algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.5s

 Yubatswe muri CPU yo murugo

Ukoresheje sisitemu y'imikorere ya LINUX, sisitemu irahagaze

Igihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000h

Shyigikira 20.000 amasomero yo kugereranya namasomero 60.000

Porotokole ikungahaye cyane, ishyigikira TCP / IP, UDP, HTTP, DNS, DHCP, MQTT protocole munsi ya Windows / Linux hamwe nizindi mbuga · Ubushyuhe bwakazi: -30 ℃ -60℃

IP66 itagira amazi kandi itagira umukungugu

 Yubatswe mumafoto yumvikanisha, ihita ihindura kuzuza ubukana bwurumuri

Imigaragarire ikungahaye cyane (I / O, WG26, WG34, RJ45, RS485)

IPS-7-IPS yuzuye-yerekana HD yerekana, nta gusiga cyangwa gutinda kumashusho
