Imashini imenyekanisha mu maso

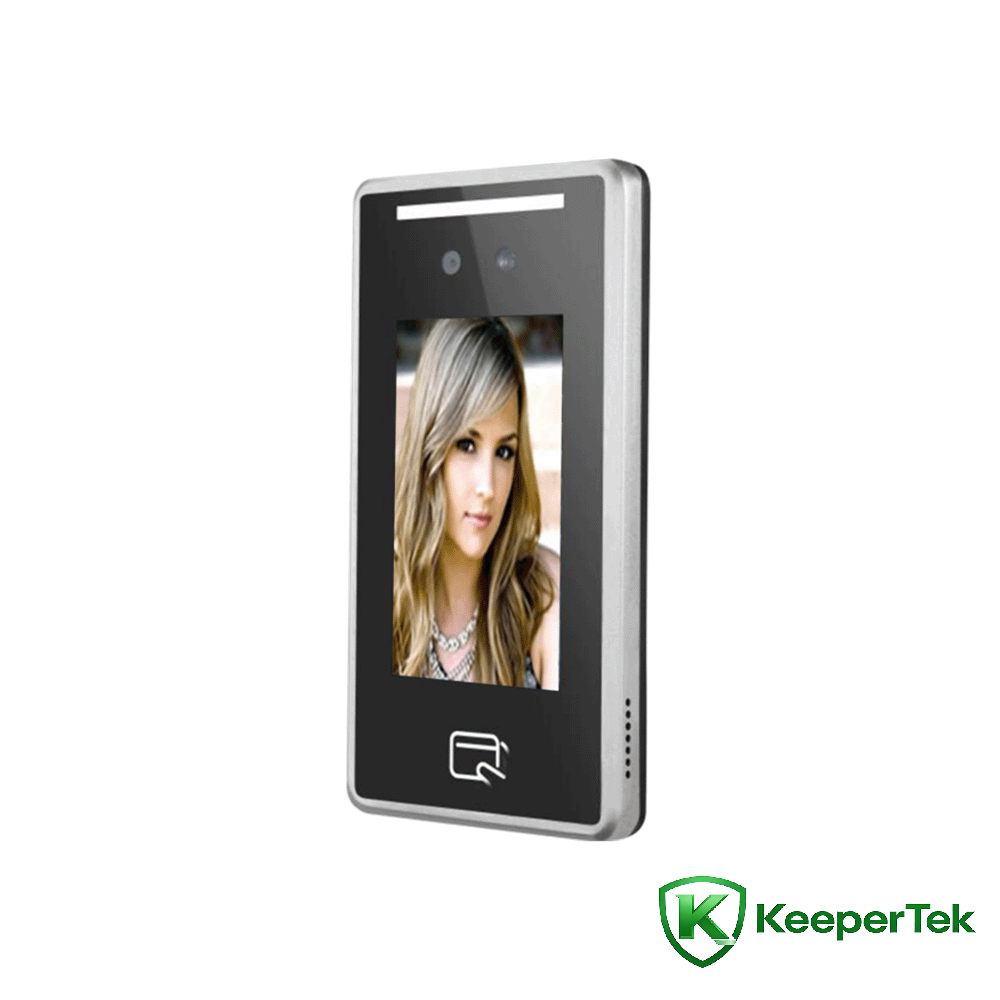

4.3santimetero abantu Isura menya brush Ikarita ihuriweho imashini KT- FR003

Ibipimo bya tekiniki

Utunganya: Dual-Core ARM Cortex-A7, @ 1.0GHz

Ububiko: RAM: 256MB ROM: 8GB

Sisitemu y'imikorere: sisitemu y'imikorere ya Linux

Lens: uburebure bwa 4.32mm

Module yo guhanagura amakarita: 13.56MHz module yohanagura ikarita yumurongo mwinshi, ishyigikira ISO / IEC 14443 TypeA, ishyigikira gusoma amakarita ya IC

Ethernet: 100M Icyambu cya Ethernet, cyujuje ubuziranenge bwa IEEE802.3 / 802.3u, gishyigikira protocole ya IPV4 na IPV6

Modire ya Wifi: 2.4GHz itumanaho rimwe rya WiFi itumanaho, ishyigikira protocole 802.11 b / g, igipimo ntarengwa 54Mbps

Module ya Bluetooth: BT 4.2 Uburyo bwo Guhindura: DPSK, DQPSK, GFSK Igipimo cyo kohereza: 1Mbps ~ 3Mbps

Mugaragaza: ecran ya 4.3-IPS LCD

Gukoraho: Gukoraho ubushobozi

Orateur: amajwi ashobora guhinduka, imbaraga 1W

Intera yo kumenyekana: metero 0.3 ~ 1.5

Inguni yo mu maso: dogere 30 ibumoso n'iburyo, dogere 30 hejuru no hepfo

Igihe cyo kumenyekana: munsi yamasegonda 0.5

Ubushobozi bwo mumaso: 1000

Ubushobozi bwo kwandika: 70.000 inyandiko

Imbaraga zinjiza: DC12V / 2A

Imiyoboro y'urusobe: 1 100M Icyambu cya Ethernet

Imigaragarire ya Wiegand: 1 Ibisohoka bya Wiegand

Imenyekanisha rimenyesha: 1 umuyoboro winjiza

Imigaragarire yumuryango: 1 sensor yinjira

Isohora ryugurura umuryango: 1 gufungura urugi

Imigaragarire y'itumanaho: 1 RS485 itumanaho

Imigaragarire ya USB: 1 USB2.0 Ubwoko A Imigaragarire

Kamera: Kamera ya binocular, urumuri rugaragara kandi hafi-ya-infragre, ifasha kumenya umubiri muzima

Pikeli ikora neza: miriyoni 2,1 zingirakamaro

Kumurika ntarengwa: ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo cyerekana-urusaku: ≥50db (AGC OFF)

Urwego rugari: 100db, ISP algorithm igice cyo kwerekana isura

Ubushyuhe bwo gukora: -10 ℃ kugeza +50℃

Ubushuhe bwakazi: 10% ~ 90% ugereranije nubushuhe, nta kondegene

Imbaraga z'ibikoresho: 10W (MAX)

ESD: hamagara ± 4KV, umwuka ± 6KV

Urwego rwo kurinda: IP42

Amashanyarazi: DC12V / 2A

Ingano y'ibicuruzwa: 173.5 * 90.0 * 24.0 (mm)

Ibiranga

Shigikira binokula nzima umubiri

·Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

·Kumenyekanisha isura idasanzwe algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.5s

·Yubatswe muri CPU yo murugo

·Ukoresheje sisitemu y'imikorere ya LINUX, sisitemu irahagaze

·Igihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000h

·Ubushyuhe bwo gukora: -10 ℃ - +50℃

·Shyigikira ibikoresho byimbere-ibikoresho, kwandikisha abakozi, kubaza amakuru nibindi bikorwa

·Imigaragarire ikungahaye cyane (USB2.0, ibyinjira byinjira mumuryango, kwinjiza imiryango, kwinjiza impuruza, gusohora Wiegand, nibindi)

·4.3-inimikorere ya capacitive touch ecran, nta shusho yerekana cyangwa gutinda
