Inkingi yo kurwanya imvururu

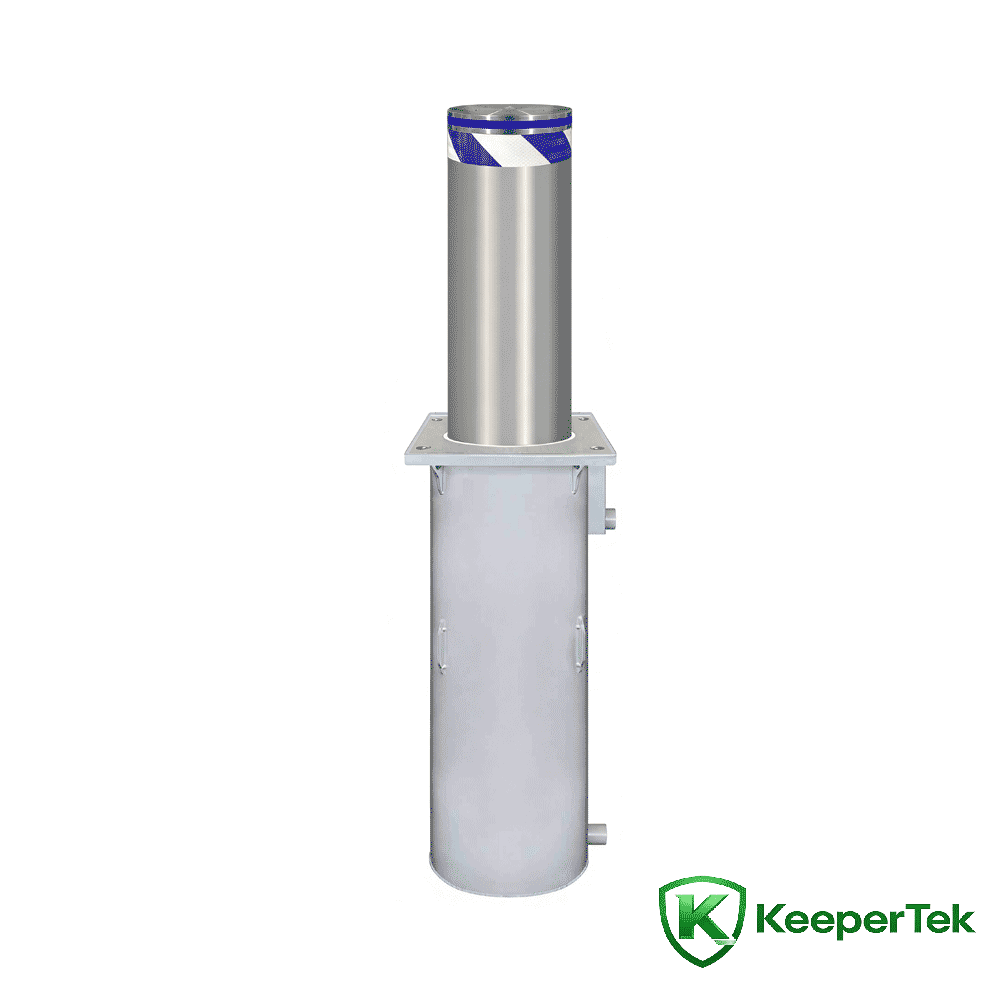

Inkingi ya flange yo guterura KT-DX04

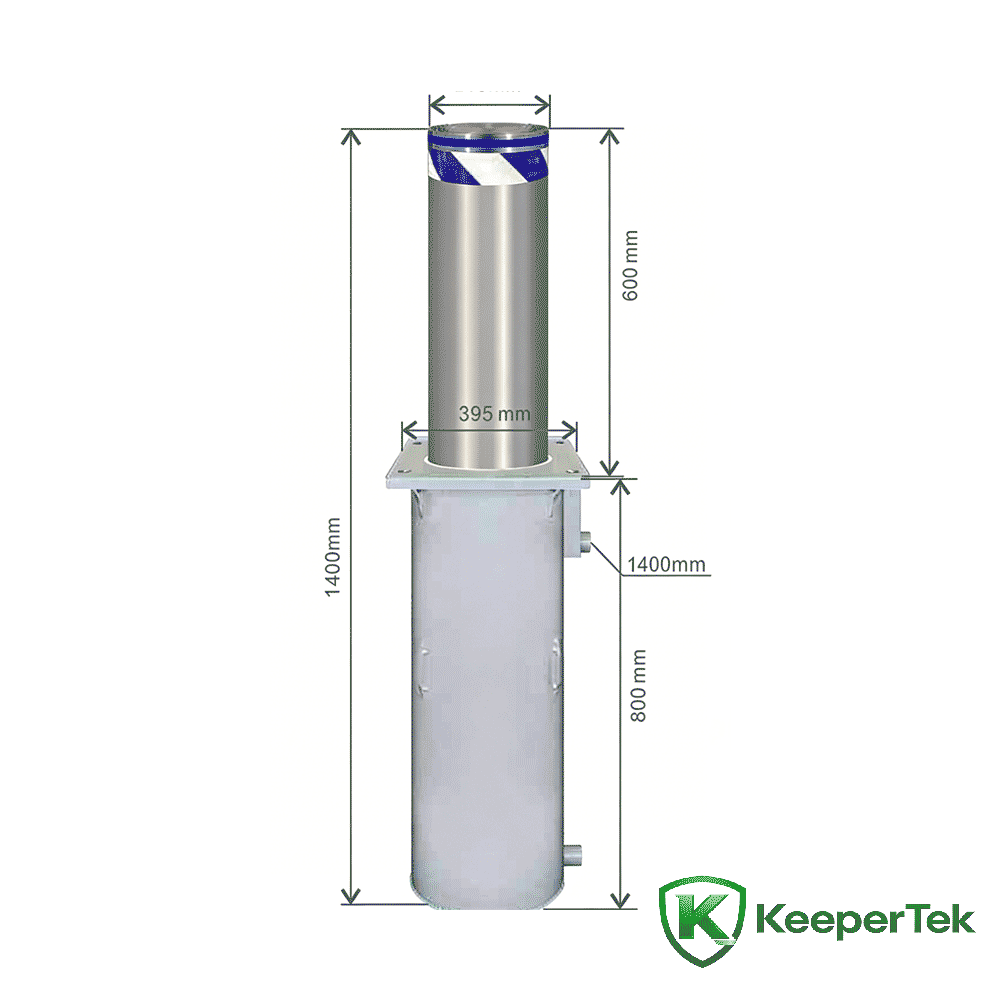

Ibipimo bya tekiniki

Diameter ya silinderi: 219mm

Uburebure bwa silinderi: 600mm

Ubunini bwa silinderi: 6mm

Ibikoresho bya silinderi: 304 ibyuma bitagira umwanda

Kuzamura umuvuduko: 2S ～ 4S

Indobo yashyizwemo ibisobanuro: 335mmx335mmx800mm

Urwego rutagira amazi: IP68

Ubushyuhe bwo gukora: -35 ℃～ 75℃

Ibisobanuro bya flange: flange 335mmx335mmx uburebure bwa 6mm

Gutanga voltage: 220V

Imbaraga: 300W

Ibimenyetso byo kuburira: ultra-high brightlight yerekana firime, amatara ya LED

Ibikorwa byihutirwa: Bifite ibikoresho bya EPS byihutirwa no kumanuka-buto imwe

Uburyo bwo kugenzura: Kwagura ibikorwa byapa byerekana ibyapa / kumenyesha umuriro / kugenzura sisitemu yo guhuza

Igenzura agasanduku / umugozi wa kure

Umubare wimyanya yubuyobozi: 3

Ibiranga

Irashobora gukoreshwa mubisanzwe nyuma yo kwihanganira kunyura mumodoka ya toni 100.；

Icyiciro cya IP68 kitarimo amazi, kirashobora gukoreshwa mubisanzwe na nyuma yo gushiramo amazi:

Imiterere irakomeye kandi iramba. Umuyoboro wa kabili hamwe nuyoboro wamazi bikozwe mubyuma bya karuboni 4mm. Ikibari cyo hanze cyakozwe hamwe na 4 zasudishijwe.；

Ukoresheje 5CM yerekana firime yerekana, ibyerekanwe birenga 90%;

Ibyifuzo-byinshi-urumuri LED yo kuburira urumuri rutezimbere neza ingaruka zo kuburira nijoro.

Ikibaho cya flange cyerekana igishushanyo mbonera kirwanya kunyerera, kandi ubunini bwa flange burahinduka 10mm / 6mm;

Umubyimba wa flange hejuru yinkingi ni 10mm / 6mm, kandi inkunga itari isanzwe iremewe kwihindura. Diameter, uburebure, uburebure, isura, umuvuduko, nibindi byo guterura inkingi birashobora gutegurwa;

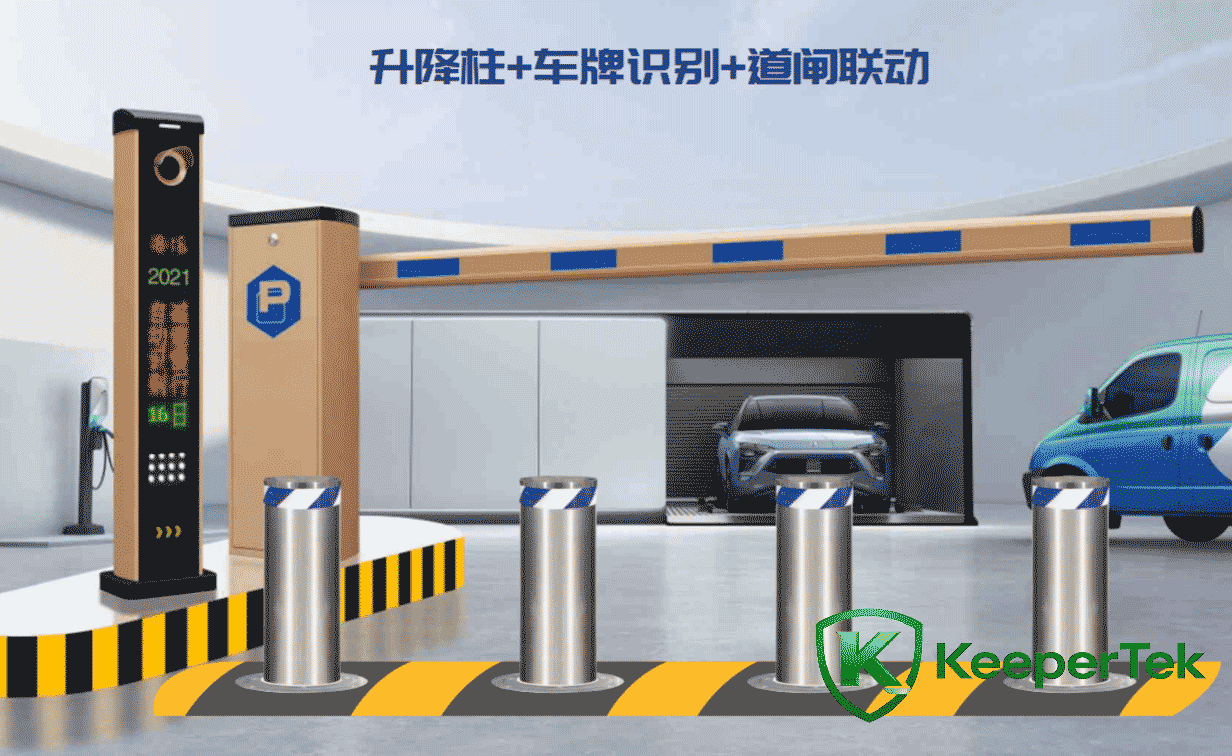

Guterura birashobora kugenzurwa bifatanije nibindi bikoresho nko kumenyekanisha ibyapa, amarembo ya bariyeri, kugenzura kwinjira, infragre, radar, kumva hasi, amatara yumuhanda, inzira yumuyaga, sisitemu yo gutabaza umuriro, nibindi.；

Sisitemu yo gucunga ibicu sisitemu ishigikiwe no kugenzura inkingi yo guterura, kandi APP igendanwa irashobora gukoreshwa mugucunga kure kuzamuka no kugwa kwinkingi yo guterura.

Amahitamo

Uburebure: uburebure 400mm, uburebure 800mm, uburebure 1000mm, uburebure 1200mm, uburebure bwa 1500mm

Umubyimba: uburebure bwa 8mm, uburebure bwa 10mm, uburebure bwa 12mm, uburebure bwa 16mm, uburebure bwa 20mm

Diameter: diameter 168mm, diameter 273mm, diameter 325mm, izindi
