Inkingi yo kurwanya imvururu

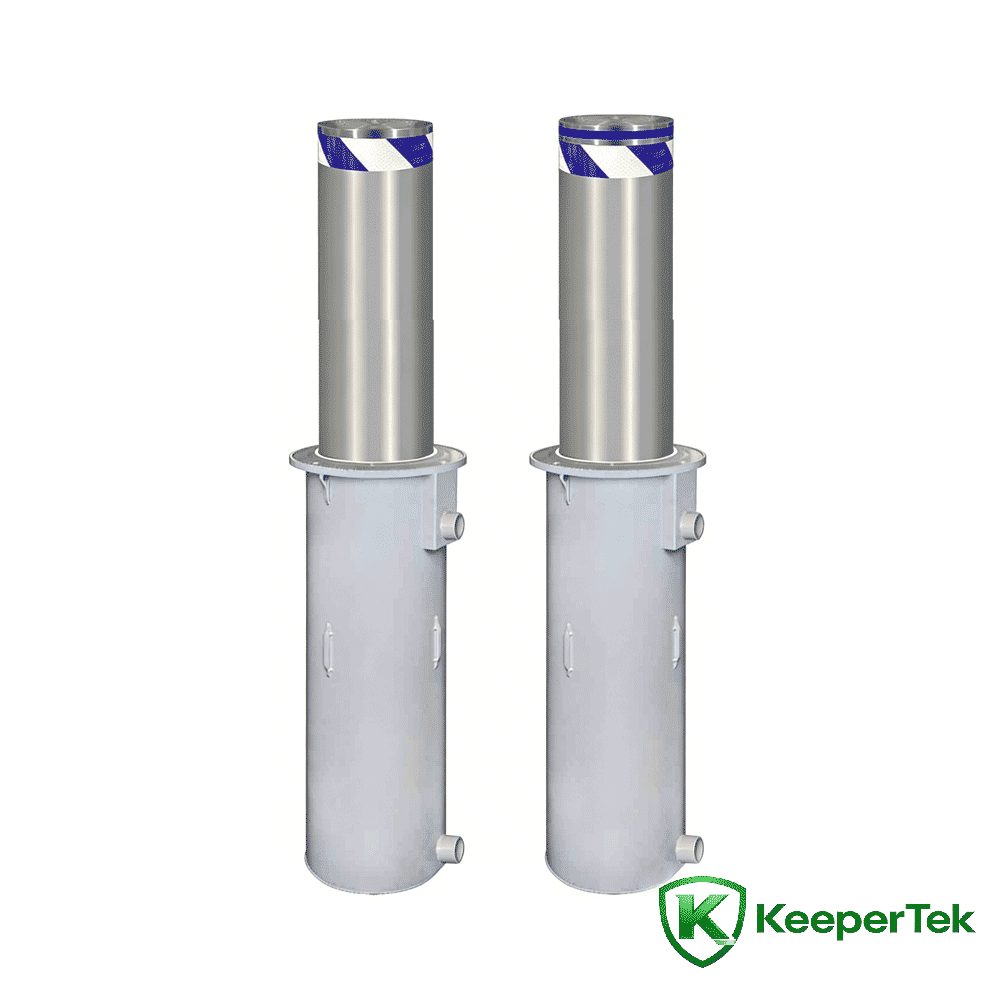

Igice cyo guterura cyikora KT-DX03

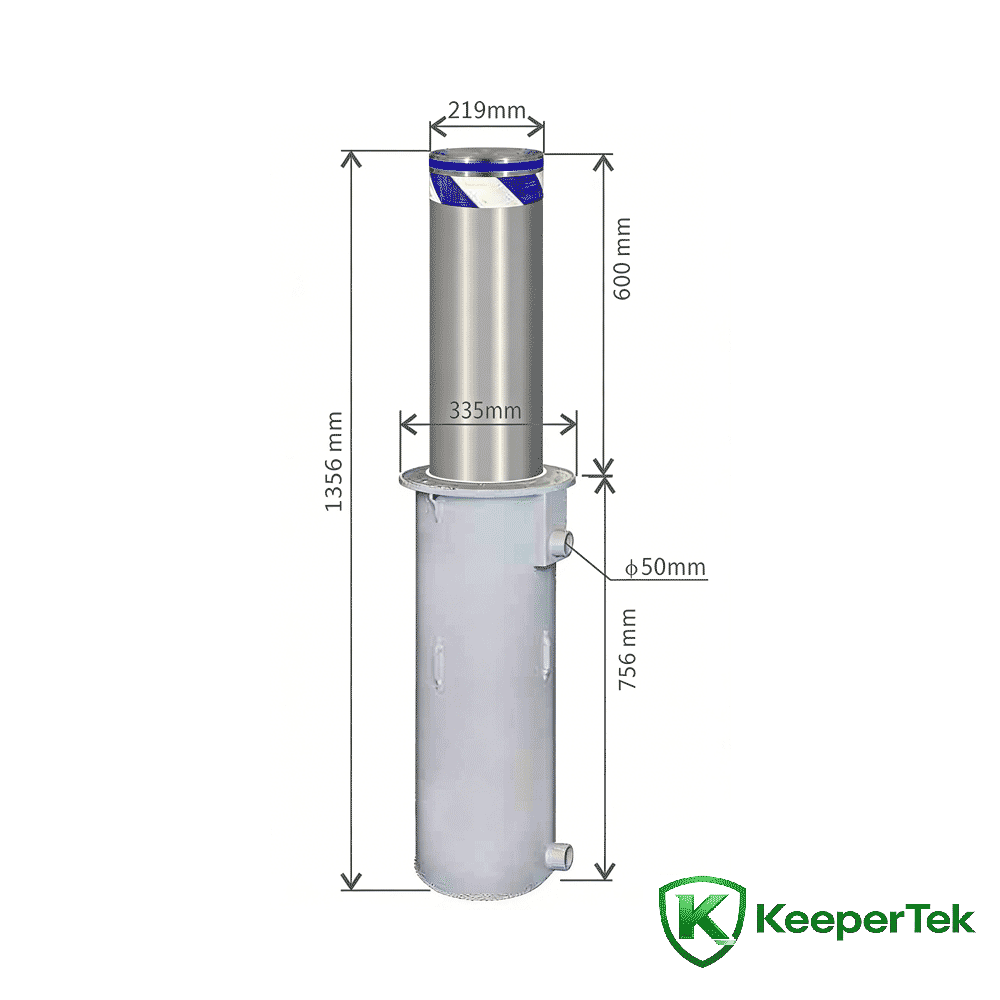

Ibipimo bya tekiniki

Diameter ya silinderi: 219mm

Uburebure bwa silinderi: 600mm

Ubunini bwa silinderi: 6mm

Ibikoresho bya silinderi: 304 ibyuma bitagira umwanda

Indobo yashyizwemo ibisobanuro: 335mmx335mmx756mm

Urwego rutagira amazi: IP68

Ubushyuhe bwo gukora: -35 ℃～ 75℃

Ibisobanuro bya flange: diameter ya flange 335mm x uburebure bwa 6mm

Ibimenyetso byo kuburira: ultra-high brightlight yerekana firime, amatara ya LED

Umubare wimyanya yubuyobozi: 3

Ibiranga

Irashobora gukoreshwa mubisanzwe nyuma yo kugongwa n imodoka itwaye toni 8;

Irashobora gukoreshwa mubisanzwe nyuma yo kwihanganira kunyura mumodoka ya toni 100.；

Icyiciro cya IP68 kitarimo amazi, kirashobora gukoreshwa mubisanzwe na nyuma yo gushiramo amazi:

Imiterere irakomeye kandi iramba. Umuyoboro wa kabili hamwe nuyoboro wamazi bikozwe mubyuma bya karuboni 4mm. Ikibari cyo hanze cyakozwe hamwe na 4 zasudishijwe.； ；

Ukoresheje 5CM yagutse ya firime yerekana, ibyerekanwa birashobora kugera kuri 90%;

Ibyifuzo-byinshi-urumuri LED yo kuburira urumuri irashobora kongera neza ingaruka zo kuburira nijoro.

Ikibaho cya flange cyerekana igishushanyo mbonera kirwanya kunyerera, kandi ubunini bwa flange burahinduka 10mm / 6mm;

Ubunini bwa flange hejuru yinkingi ni 10mm / 6mm;

Ibidasanzwe-byemewe byemewe. Muri rusange diameter, uburebure, uburebure, isura, umuvuduko, nibindi byo guterura inkingi birashobora gutegurwa.

Amahitamo

Uburebure: uburebure 400mm, uburebure 800mm, uburebure 1000mm, uburebure 1200mm, uburebure bwa 1500mm

Umubyimba: uburebure bwa 8mm, uburebure bwa 10mm, uburebure bwa 12mm, uburebure bwa 16mm, uburebure bwa 20mm

Diameter: diameter 168mm, diameter 273mm, diameter 325mm, izindi
