Inkingi yo kurwanya imvururu

24V Umuvuduko muke wumuriro wo guterura amashanyarazi KT-DX08

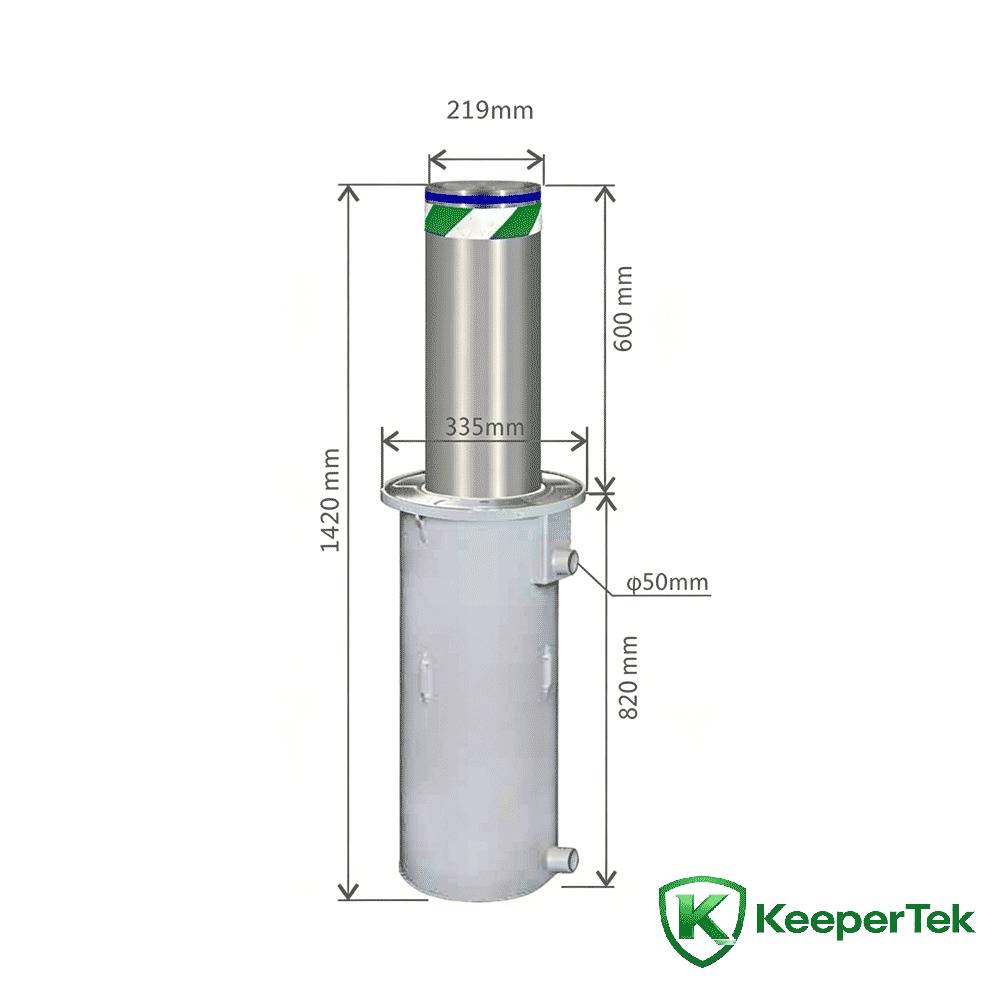

Ibipimo bya tekiniki

Diameter ya silinderi: 219mm

Uburebure bwa silinderi: 600mm

Ubunini bwa silinderi: 6mm

Ibikoresho bya silinderi: 304 ibyuma bitagira umwanda

Umuvuduko wo guterura: 6S ～ 13S

Indobo yashyizwemo ibisobanuro: diameter 395mm x ubujyakuzimu 820mm

Urwego rutagira amazi: IP68

Ubushyuhe bwo gukora: -35 ℃～ 75℃

Ibisobanuro bya flange: 395mm × 10mm

Gutanga voltage: 24V

Imbaraga: 200W

Ibimenyetso byo kuburira: ultra-high brightlight yerekana firime, amatara ya LED

Ibikorwa byihutirwa: Bifite ibikoresho bya EPS byihutirwa no kumanuka-buto imwe

Uburyo bwo kugenzura: Agasanduku k'ubugenzuzi karashobora gukoreshwa kuri umwe-umwe kugenzura / kugenzura insinga / kugenzura kure

Imikorere yagutse: kumenyekanisha icyapa / gutabaza umuriro / kugenzura sisitemu yo guhuza

Ibiranga

DC 24V amashanyarazi meza, voltage yumutekano;

Wiring yoroshye, umurongo umwe gusa wo kugenzura urakenewe kubisanduku yo kugenzura hamwe no guterura inkingi, kuzigama ibiciro byinsinga；

Irashobora guhuzwa na 24VUPS itanga amashanyarazi kugirango igenzure kuzamura；

Icyiciro cya IP68 kitarimo amazi, kirashobora gukoreshwa mubisanzwe na nyuma yo gushiramo amazi:

Imiterere ikomeye kandi iramba, ubushobozi bunini bwo kwikorera；

Ukoresheje 5CM yagutse ya firime yerekana, ibyerekanwa birashobora kugera kuri 90%;

Ibyifuzo-byinshi-urumuri LED yo kuburira urumuri irashobora kongera neza ingaruka zo kuburira nijoro.

Ikibaho cya flange cyerekana igishushanyo mbonera kirwanya kunyerera, kandi ubunini bwa flange burahinduka 10mm / 6mm;

Ubunini bwa flange hejuru yinkingi ni 10mm / 6mm;

Ibidasanzwe byemewe biremewe. Muri rusange diameter, uburebure, uburebure, isura, umuvuduko, nibindi byo guterura inkingi birashobora gutegurwa.

Amahitamo

Uburebure: uburebure 400mm, uburebure 800mm, uburebure 1000mm, uburebure 1200mm, uburebure bwa 1500mm

Umubyimba: uburebure bwa 8mm, uburebure bwa 10mm, uburebure bwa 12mm, uburebure bwa 16mm, uburebure bwa 20mm

Diameter: diameter 168mm, diameter 273mm, diameter 325mm, izindi
