Imashini imenyekanisha mu maso

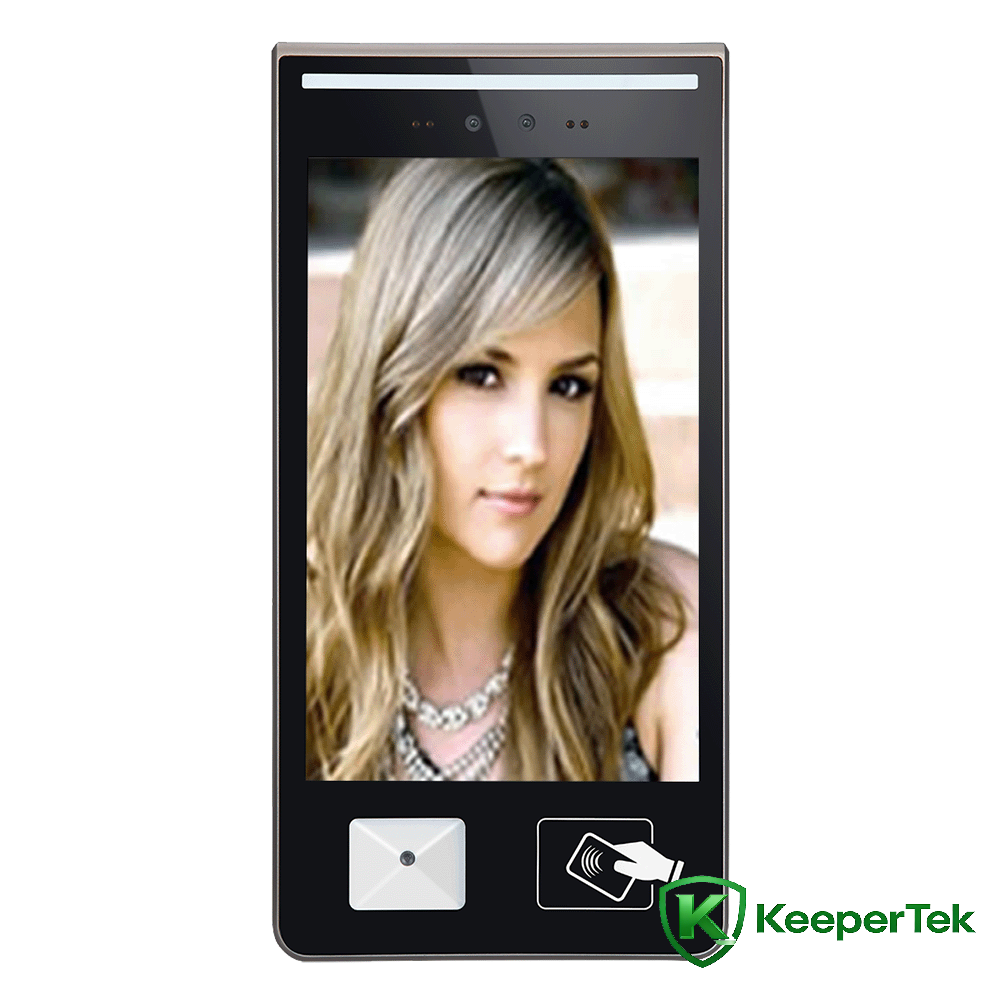

10.1Inch umuntu Isura menya Ibice bibiri Byose-muri-kode yohanagura hamwe namashini yamamaza amakarita KT- FR016

Ibipimo bya tekiniki

Umucungamutungo: Imbere muntoki ebyiri-yibanze + 1G yibuka + 8G EMMC

Sisitemu y'imikorere: sisitemu y'imikorere ya Linux

Ububiko: Shyigikira ububiko bwa TF (bidashoboka)

Kamera: Binocular, miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Igikoresho cyo gufata amashusho: 1 / 2.8 "Gusuzuma iterambere rya CMOS

Lens: uburebure bwa 4.5mm

Module yo guhanagura amakarita: mifare imwe (M1), S50, S70, NTAG2xx hamwe nandi makarita ya bande ya 13.56MHz, TK, EM hamwe nandi makarita ya bande ya 125KHz (ashyigikiwe na IC / ID)

QR code yo gusoma module: ishyigikira Kode ya QR, PDF417, ECC200, EAN13, Code128 nandi ma code ya QR hamwe na code imwe-imwe

Gukoraho ecran module: capacitive multi-touch ecran

Orateur: Ibirimo gukina amajwi birashobora gutegurwa

Uburebure bwo kumenyekana: metero 1,2 ~ 2,3, inguni irashobora guhinduka

Intera yo kumenyekana: metero 0.5 ~ 2,5

Inguni yo mu maso: dogere 30 ibumoso n'iburyo, dogere 30 hejuru no hepfo

Igihe cyo kumenyekana: munsi yamasegonda 0.5

Ubushobozi bwo kubika: 80.000 byanditseho amashusho

Ubushobozi bwo mumaso: 30.000

Imbaraga zinjiza: DC12V / 3A

Imiyoboro y'urusobe: 1 RJ45 10M / 100M ihuza icyambu cya Ethernet icyambu, icyambu cya Gigabit cyihariye

Imigaragarire ya Wiegand: 1 Imigaragarire ya Wiegand, 1 Iyinjiza rya Wiegand

Imigaragarire yumuryango: Irembo ryumuryango winjiza

Urugi rwo gufungura urugi: 1 umuryango wugurura umuryango winjiza

Imigaragarire ya GPIO: 1 Imigaragarire ya GPIO

Imigaragarire yo gufunga umuryango: isohoka ryumuryango 1

Imigaragarire y'itumanaho: 1 RS485 itumanaho

Kamera: Kamera ya binocular, lens-ibirahuri byose, urumuri rugaragara kandi hafi-ya-infragre, ifasha kumenya umubiri muzima

Pikeli ikora neza: miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Kumurika ntarengwa: ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo cyerekana-urusaku: ≥50db (AGC OFF)

Ingano yagutse: 120db, ISP algorithm igice cyerekana isura

Kode ya videwo: H.265 Umwirondoro wingenzi wa kodegisi / H.264 BP / MP / HP kodegisi / MJPEG

Ubushyuhe bwo gukora: -30 ℃ -70℃

Ubushuhe bwakazi: 0 ~ 90% ugereranije nubushuhe, ntagahunda

Imbaraga z'ibikoresho: 20W (MAX)

Urwego rwo gutera umunyu: Rp6 cyangwa hejuru

Antistatike: hamagara ± 6KV, umwuka ± 8KV

Amashanyarazi: DC12V / 2A

Urwego rwo kurinda: IP66

Ibisobanuro bya ecran: 10.1-santimetero ndende-isobanura IPS

Ingano y'ibikoresho: 319 * 157 * 25.2mm

Ibiranga

Shigikira binokula nzima umubiri

Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

Kumenyekanisha isura idasanzwe algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.5s

Gushyigikira uburyo bwagutse bwo gupima ubushyuhe bwo gupima ubushyuhe bwumubiri hafi kandi bigatanga ubushyuhe bwo hejuru, kandi bugashyigikira amakuru yubushyuhe bwa protocole docking

Ukoresheje sisitemu y'imikorere ya LINUX, sisitemu irahagaze

H.265 yerekana imiterere ya videwo yerekana amashusho ahujwe na NVR nibindi bikoresho byo kubika binyuze muri protokole ya ONVIF na protocole ya GB28181.

Shyigikira ububiko bwaho mu ikarita ya TF, hamwe nububiko bwamafoto bwumwaka 1 na videwo ukwezi 1 cyangwa kurenga (bitewe nubushobozi bwikarita ya TF itabishaka)

Igihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000h

Shyigikira 30.000+ yo kugereranya amasomero yo kugereranya hamwe na 80.000 byamenyekanye

Porotokole ikungahaye cyane, ishyigikira TCP / IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocole munsi ya Windows / Linux hamwe nandi ma platform

Ubushyuhe bwo gukora: -30 ℃ -70℃

Shyigikira impuruza yo kurwanya tamper

Shyigikira amashusho yibicu

Yubatswe muri QR code umusomyi

Yubatswe mu ikarita ya IC

Shyigikira mikoro yinjiza amajwi na disikuru isohoka amajwi

Imigozi ikungahaye cyane (I / O, WG26, WG34, RJ45, sensor yumuryango, gufungura umuryango, RS485)

10.1-inimero ya IPS capacitive touch ya ecran, nta gusiga amashusho cyangwa gutinda

Kwunguka byikora hamwe nuburinganire bwera byemerera ibara ryukuri kwishusho kugarurwa muburyo busanzwe

Yubatswe mumurongo wumukara urwego rukoreshwa mugukurikirana amashusho, kumenya neza urumuri ruto

Kugabanya urusaku rwa 3D hamwe na tekinoroji yinjira mu gihu bituma amashusho akurikirana munsi yamurika rike kandi arambuye

Shyigikira guhagarika igice cya videwo

Automatic yera iringaniye, intoki yera iringaniye irahari

Shyigikira igihe ntarengwa cyo gushiraho

Shigikira igenamiterere rya terefone igendanwa

Shyigikira kugabanya urusaku 2D no kugabanya urusaku rwa 3D

Shyigikira gahunda yo gufata igihe cyigihe no kohereza uburyo bwo gushiraho

Shyigikira amashusho ya videwo, itandukaniro, hue, kwiyuzuza, hamwe no guhindura gamma

Shigikira gushiraho igihe ntarengwa cyo kwerekana igihe

Gushyigikira guhura nubwenge no guhura nubwenge bwo kuzamura ubwenge
