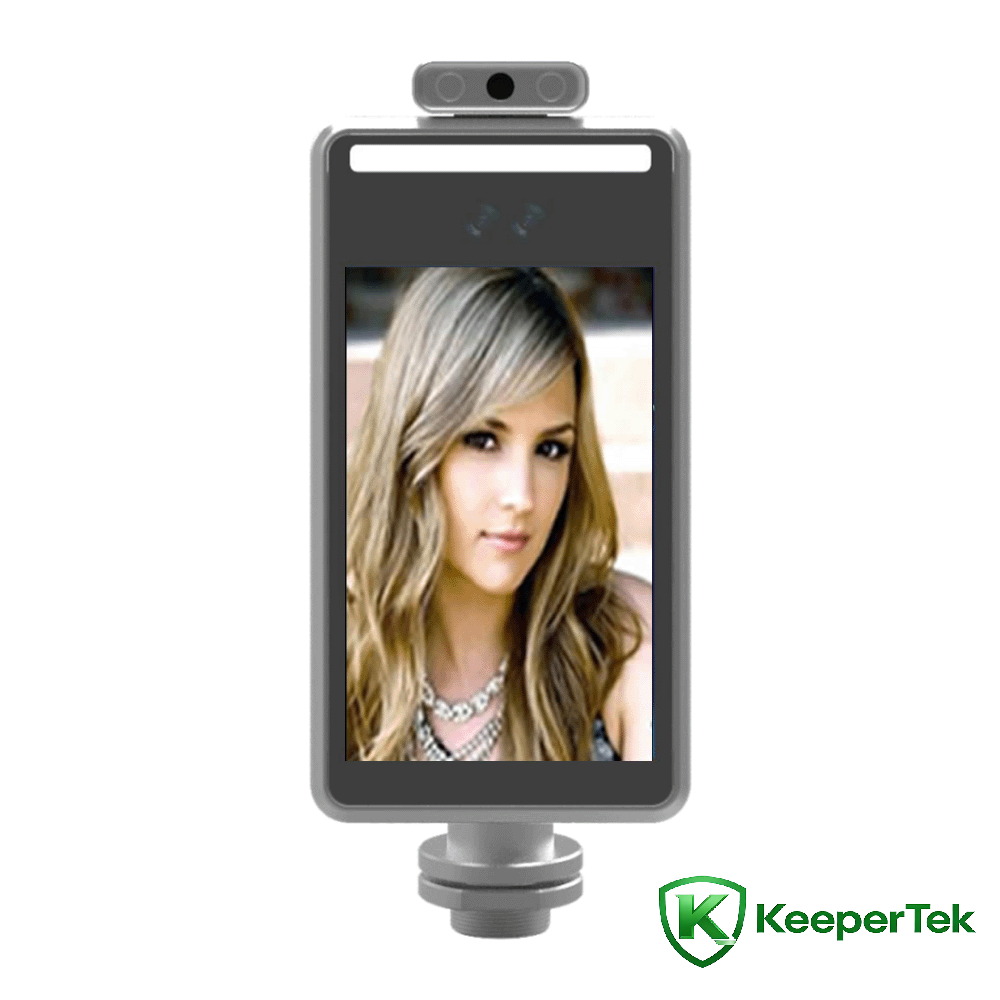

Imashini imenyekanisha mu maso

8santimetero abantu kumenyekana mu maso Thermometry Imashini-imwe-imwe KT- FR008

Ibipimo bya tekiniki

Gutunganya: Dual-core ARM Cortex-A7

Sisitemu y'imikorere: Sisitemu y'imikorere ya Linux

Ububiko: 1GB RAM + 8GB eMMC

Inguni yo kureba: Ihagaritse yo kureba: 30 °； Inguni yo kureba itambitse: 30 °

Igikoresho cyo gufata amashusho: 1 / 2.8 "Gusuzuma iterambere rya CMOS

Lens: 6mm

Module yo guhanagura amakarita (bidashoboka): 13.56MHz, ishyigikira amakarita ya Mifare S50, S70, amakarita ya ultralinght, amakarita ya NTAG, DESFire D21, D41, D81, amakarita ya CPU adahuza

Module ya 4G (itabishaka): ishyigikira LTE-FDD, LTE-TDD, DC-HSPA +, WCDMA, EDGE, GPRS nibindi bipimo byurusobe, hamwe nigipimo ntarengwa cyo kugabanuka cya 160Mbps nigipimo kinini cyo hejuru cya 60Mbps

Modire ya Wifi (itabishaka): 2.4GHz yumurongo wumurongo, IEEE802 b / g / n protocole； 5GHz yumurongo wumurongo, IEEE802 a / n / ac protocole

Orateur: ibisanzwe, amajwi yo gukina amajwi arashobora gutegurwa

Ibipimo byo gupima: 16 ℃ -40 ℃, nta muyaga uri mu nzu (reba ibisobanuro birambuye)

Ibipimo byo gupima ubushyuhe: Lens y'umwimerere yatumijwe mu Burayi

Ubwoko bwa Sensor: Icyiciro cyubuvuzi cya sensor yatumijwe mu Burayi

Ibipimo bifatika: ± 0.3℃

Gukemura ubushyuhe: 0.1℃

Intera yo gupima ubushyuhe: ≤30cm

Igihe cyo gusubiza: 300m

Uburebure bwo kumenyekana: metero 1.2 ~ 2,2, inguni irashobora guhinduka

Intera yo kumenyekana: metero 0.3 ~ 1.5, irahinduka bitewe ninzira

Igihe cyo kumenyekana: munsi yamasegonda 0.3

Ubushobozi bwo gufata amajwi: 80.000 byanditseho amashusho

Ubushobozi bwo mumaso: 30.000

Umucyo wa ecran: ≥400 cd / m2

Guhindura ibisohoka: 1 guhinduranya ibisohoka, ibindi byambu bya GPIO birashobora gutegurwa

USB Imigaragarire: 1 USB interineti nkigikoresho

Imiyoboro y'urusobe: 1 RJ45 10M / 100M ihuza icyambu cya Ethernet icyambu, icyambu cya Gigabit cyihariye

Imigaragarire ya Wiegand: 1 Imigaragarire ya Wiegand, 1 Iyinjiza rya Wiegand

Imigaragarire y'itumanaho: 1 RS485

Kamera: Kamera ya binocular, urumuri rugaragara kandi hafi ya infragre, ifasha kumenya umubiri muzima

Pikeli ikora neza: miliyoni 2,1 pigiseli ikora neza, 1920 * 1080

Kumurika ntarengwa: ibara 0.01Lux @ F1.2 (ICR); umukara n'umweru 0.001Lux @ F1.2 (ICR)

Ikigereranyo cyerekana-urusaku: ≥50db (AGC OFF)

Ingano yagutse: 120db, ISP algorithm igice cyerekana isura

Kode ya videwo: H.265 Umwirondoro wingenzi wa kodegisi / H.264 BP / MP / HP kodegisi / MJPEG

Ubushyuhe bwo gukora: -30 ℃ - + 60 ℃ (ubushyuhe bwo gupima ubushyuhe bwibidukikije: + 16 ℃ - + 40 ℃)

Ubushuhe bwakazi: 0 ~ 90% ugereranije nubushuhe, ntagahunda

Urwego rwo gutera umunyu: Rp6 cyangwa hejuru

Antistatike: hamagara ± 6KV, umwuka ± 8KV

Amashanyarazi: DC12V / 2A

Urwego rwo kurinda: IP42

Imbaraga z'ibikoresho: 20W (MAX)

Ingano y'ibikoresho: 272 (uburebure) * 136 (ubugari) * 34 (uburebure) mm

Ibiranga

Shigikira binokula nzima umubiri

Shyigikira isura ikurikirana no kwerekana abantu bagenda mumatara akomeye

Kumenyekanisha isura idasanzwe algorithm, kumenya neza amasura, igihe cyo kumenya isura kiri munsi ya 0.3s

Ukoresheje sisitemu y'imikorere ya LINUX, sisitemu irahagaze

Imiterere ya videwo ya H.265 ihuza neza na NVR nibindi bikoresho byo kubika binyuze muri protokole ya ONVIF na protocole ya GB28181.

Shyigikira ububiko bwaho mu ikarita ya TF, hamwe nububiko bwamafoto bwumwaka 1 na videwo ukwezi 1 cyangwa kurenga (bitewe nubushobozi bwikarita ya TF itabishaka)

Hagati yigihe cyo kwiruka hagati yo gutsindwa MTBF ＞ 50000h

Shyigikira 30.000+ yo kugereranya amasomero yo kugereranya hamwe na 80.000 byamenyekanye

Gushyigikira gupima ubushyuhe bwumubiri hafi kandi nubushyuhe bwo hejuru

Shyigikira ubushyuhe bwamakuru ya interineti protocole docking

Porotokole ikungahaye cyane, ishyigikira TCP / IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocole munsi ya Windows / Linux hamwe nandi ma platform

Ubushyuhe bwo gukora: -30 ℃ -60 ℃ (ubushyuhe bwo gupima ubushyuhe bwibidukikije: + 16 ℃ - + 40 ℃)

IP42 idafite amazi kandi itagira umukungugu

Imigozi ikungahaye cyane (I / O, WG26, WG34, RJ45, USB, RS485)

I-8-IPS yuzuye-yerekana HD yerekana, nta gusiga cyangwa gutinda kumashusho

Kwunguka byikora hamwe nuburinganire bwera byemerera ibara ryukuri kwishusho kugarurwa muburyo busanzwe

Yubatswe mumurongo wumukara urwego rukoreshwa mugukurikirana amashusho, kumenya neza urumuri ruto

Kugabanya urusaku rwa 3D hamwe na tekinoroji yinjira mu gihu bituma amashusho akurikirana munsi yamurika rike kandi arambuye

Shyigikira guhagarika igice cya videwo

Shyigikira kodegisi ya ROI

Automatic yera iringaniye, intoki yera iringaniye irahari

Shyigikira kugabanya urusaku 2D no kugabanya urusaku rwa 3D

Shyigikira amashusho ya videwo, itandukaniro, hue, kwiyuzuza, hamwe no guhindura gamma

Shigikira gushiraho igihe ntarengwa cyo kwerekana igihe

Gushyigikira guhura nubwenge no guhura nubwenge bwo kuzamura ubwenge
